Description
A strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger craft.
Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.
| Size | 1 (30MM) |
|---|---|

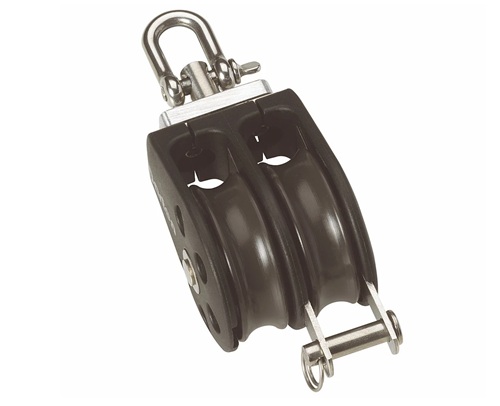

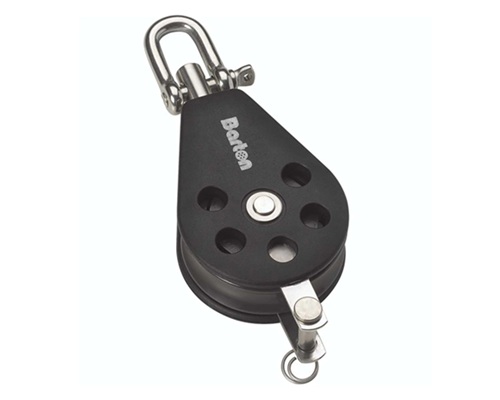

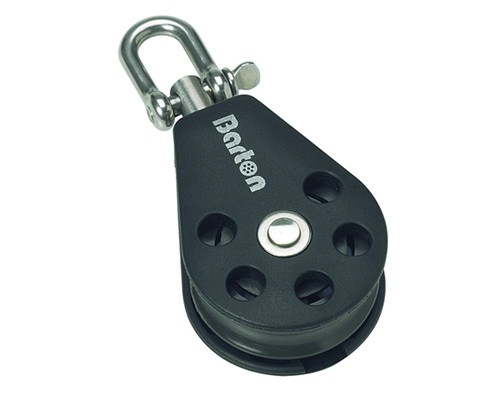

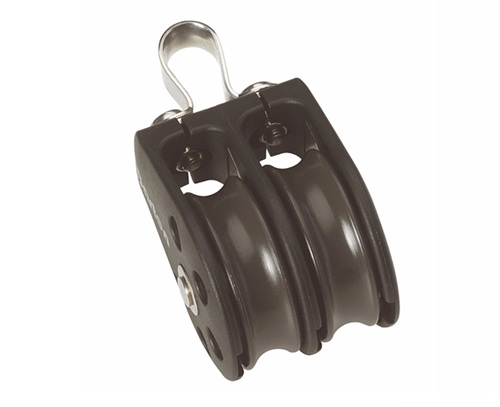

| Block Type | FIXED EYE, SWIVEL & SWIVEL WITH BECKET |
| No. of Sheaves | SINGLE (1) & DOUBLE (2) |
| Bearing Type | Plain |
| Sheave Size | 30mm x 12mm (1 3/16″ x 15/32″) |
| Max rope diameter | 8mm (5/16″) |
| SWL | 355kg (782lbs) |
| Break load | 710kg (1565lbs) |
