Description

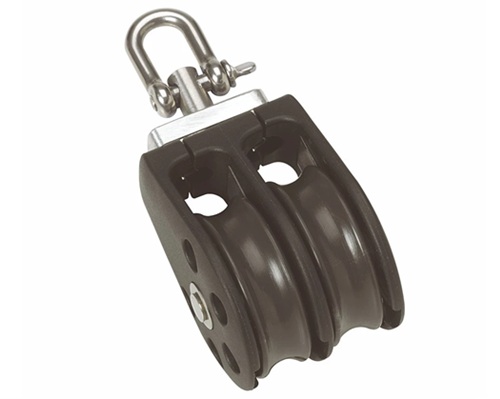

Size 3 45mm Plain Bearing Pulley Block Double With Swivel
The size 3 Barton plain bearing blocks have 45mm (1 3/4″ sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks or wherever a powerful and compact purchase system is required on dinghies, dayboats and lightweight cruisers.
Suitable for up to 10mm (3/8″) rope.
| Dimensions | 104 × 46 × 47 mm |
|---|---|
| Size | 3 (45MM) |
| Block Type | Swivel |
| No. of Sheaves | Double |
| Bearing Type | Plain |
| Sheave Size | 45mm x 13mm (1 3/4″ x 35/64″) |
| Max rope diameter | 10mm (3/8″) |
| SWL | 400kg (881lbs) |
| Break load | 800kg (1763lbs) |
