FORK AND FORK RIGGING SCREW CLOSED

39.96195.10

Blue Wave Closed Body
Rigging Screw Fork & Fork
UNF Thread

STAINLESS STEEL
(AISI 316)

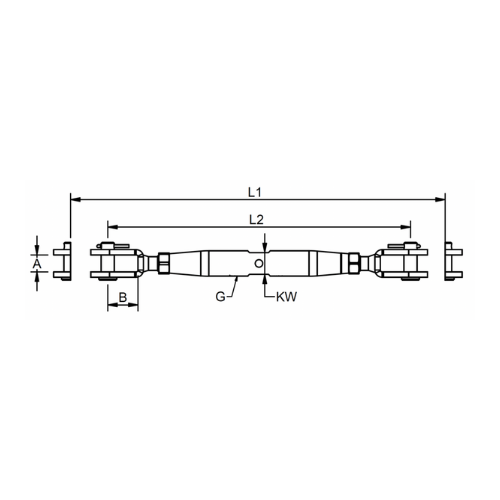

Photo of UNF Fork & ForkPro-Boat Marine Equipment



  Part G
UNF
Pin Dia
mm
A
mm
L1
mm
L2
mm
T
mm
Break
Load Kg.
  BW-120006-A 1/4 ins 6.35 9.5 232 140 13.0 1300
  BW-120008-A 5/16 ins 8.0 11 242 168 15.0 2350
  BW-120010-A 3/8 ins 9.5 12 274 190 19.0 3500
  BW-120011-A 7/16 ins 11.0 12 310 219 23.0 4700
  BW-120012-A 1/2 ins 12.7 14 350 244 25.0 5400
  BW-120016-AX 5/8 ins 16.0 18 447 314 33.0 8000
39.96

12 in stock (can be backordered)

55.90

12 in stock (can be backordered)

73.28

2 in stock (can be backordered)

90.56

4 in stock (can be backordered)

111.80

2 in stock (can be backordered)

195.10

2 in stock (can be backordered)

SKU: G538 Category:
