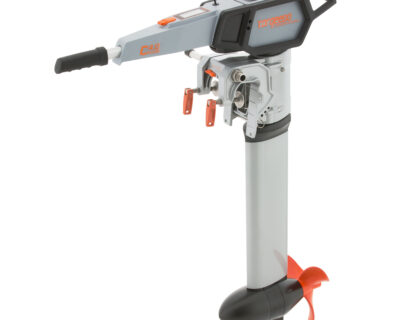

TORQEEDO CRUISE 4.0 R

3,549.00

Cruise 4.0 with Remote Throttle

For dinghies and sailboats up to 4 tons

3,549.00

Available on back-order

SKU: G562 Category:

Description

  • Improved robustness and improved corrosion protection
  • 4,000 W input power, in terms of propulsion is comparable with a 8-hp petrol outboard
  • Maximum efficiency outboard
  • Integrated on-board computer with GPS-based range calculation
  • 25 mm (2) cable set (3m) including fuse and main switch
  • Emergency magnetic stop key
  • Battery cable bridge for lead batteries
  • Fuse and main switch

Equipment included:

Integrated on-board computer with GPS and display, fuse and main switch, emergency magnetic stop, 25 mm2 cable set (3m), battery cable bridge for lead batteries, remote throttle (Cruise R models) and remote steering connector (Cruise R models)

Warranty:

2 years for non-commercial use

Cruise 4.0 with 2 x Power 26-104

Alternative: 4 x 12 V / 200 Ah AGM Batteries

;

Speed in knots (km/h) Range in sm (km) Running time in hours:
Slow

2.7 (5.0)

29 (54)

10:45

Full throttle

7.0 (13)

8 (15)

01:10

;
;

Range Information

When travelling through water, displacement increases power required in proportion to the cube (third power) of the speed. This means that doubling water speed increases the power required eightfold.

Conversely, it of course also means that only a slight reduction in speed will increase the range attainable significantly. Simply reducing speed by e.g. half a knot has a considerable effect on the remaining range.

Since mental arithmetic to the power of three is quite tricky, the on-board computer of the Cruise constantly calculates the remaining range for you. To do this, it combines the consumption data from the motor with the charge level of the batteries together with the speed over water obtained via GPS. This means you can read the remaining range in real time from the Cruise’s display. Using the TorqTrac App you can even read the remaining range from a map on your smartphone.

Technical Data Cruise

;

Cruise 4.0 R
Input power in watts

4000

Propulsive power in watts

2240

Comparable petrol outboards (propulsive power)

8 HP

Comparable petrol outboards (thrust)

9.9 HP

Maximum overall efficiency in %

56

Static thrust in lbs*

189

Integrated battery

Nominal voltage

48

Final charging voltage

Total weight in kg

16.1 (S) / 17.0 (L)

Motor weight without battery in kg

Weight of integrated battery

Shaft length in cm

62.5 (S) / 75.5 (L)

Standard propellerv = speed in km/h at p = power in watts

v19/p4000

Alternative propeller options

v30/p4000, v8/p350

Maximum propeller speed in rpm

1300

Control

Remote throttle

Steering

Provision to connect to standard remote steering; lockable

Tilting device

Manual with grounding protection

Tilt angle

61,3°

Trim device

Manual, 4-step

Integrated on-board computer

Yes

Stepless forward/reverse drive

Yes
