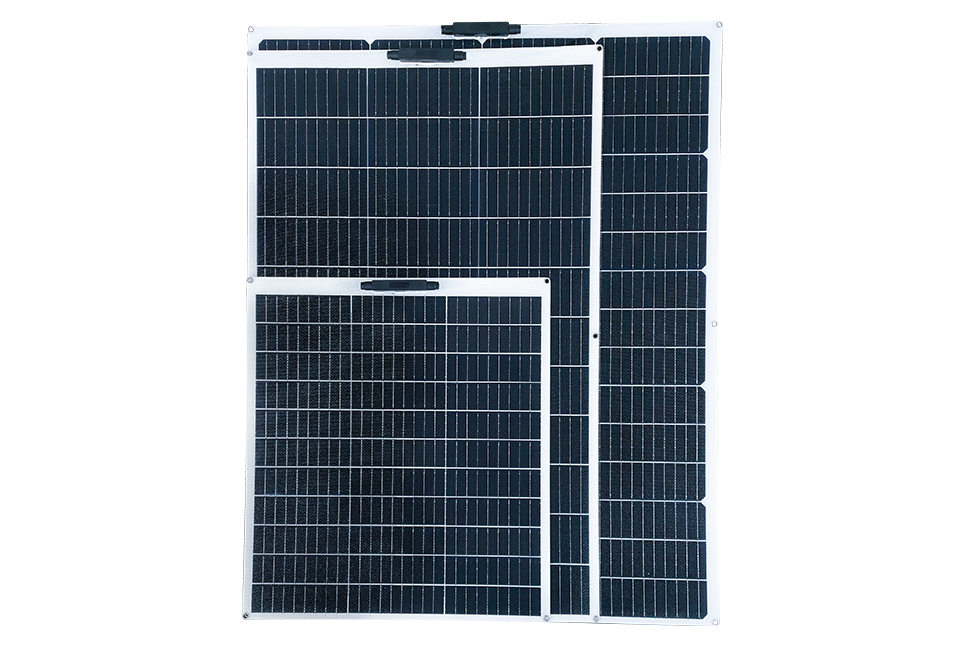

Seago ETFE Flexible Solar Panels

Price range: €199.95 through €299.95

  • 3° flexibility or 3cm per 1m of panel length ETFE rough scratch resistant surface which can be walked on in deck shoes.
  • Aluminium Substrate
  • Highly efficient monocrystalline cells
  • Can be conveniently placed on slightly curved solid surfaces
  • Can be easily bonded using Fixing Adhesive (no need for drilling)

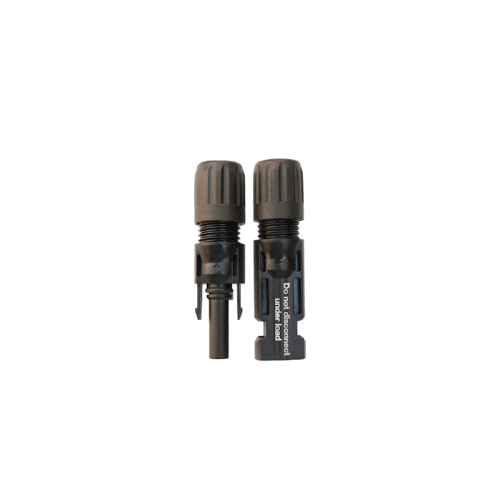

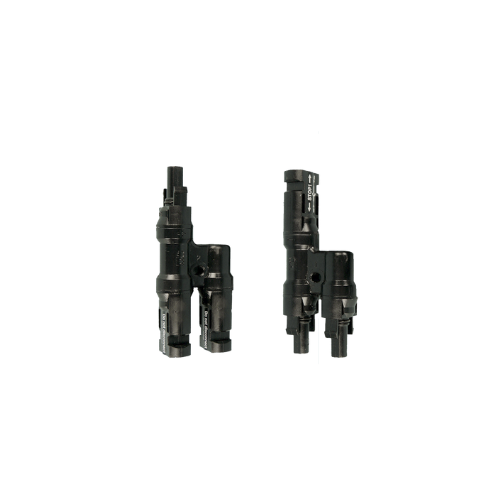

  • 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)

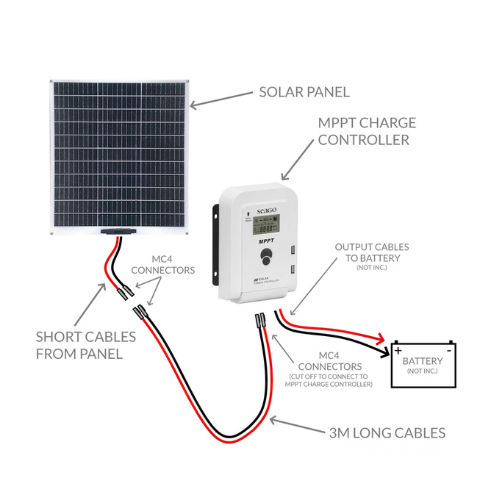

  • Full kit product includes: Solar panel, MPPT Controller, 2 x 3m cables with MC4 connectors

Description

Durability

Crafted for the outdoors, these panels are built to withstand the harshest environments. Thanks to their advanced EVA backing and a tough, UV-resistant ETFE coating, they offer exceptional resilience against weather, wear, and corrosion, ensuring long-lasting performance wherever your journey takes you.

Flexibility

What sets Seago’s solar panels apart is their flexible design, allowing them to be seamlessly mounted on curved or uneven surfaces, perfect for boats, campervans, off-grid cabins, and more. Despite their slim profile, they pack impressive power output, making them ideal for space-conscious installations without compromising efficiency.

Efficiency:

  • 3° flexibility or 3cm per 1m of panel length ETFE rough scratch resistant surface which can be walked on in deck shoes.
  • Aluminium Substrate
  • Highly efficient monocrystalline cells
  • Can be conveniently placed on slightly curved solid surfaces
  • Can be easily bonded using Fixing Adhesive (no need for drilling)
  • 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
  • Full kit product includes: Solar panel, MPPT Controller, 2 x 3m cables with MC4 connectors
Model Specification 50W 100W 150W
Power Tolerance ±3% ±3% ±3%
Operating Voltage (Vmp) 18±0.1V 18±0.1V 18±0.1V
Operating Current (Imp) 2.7A±0.5A 5.5A±0.5A 8.3A±0.5A
Short Circuit Current (Isc) 3.14A±0.5A 6.04A±0.5A 9.14A±0.5A
Open Circuit Voltage (Voc) 21.6V±0.8V 21.6V±0.8V 21.6V±0.8V
Maximum System Voltage 1000V 1000V 1000V
Product Size (mm) 560 × 500 × 2 580 × 930 × 2 770 × 970 × 2

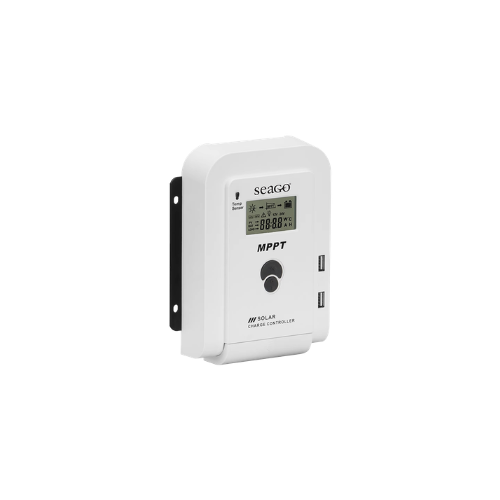

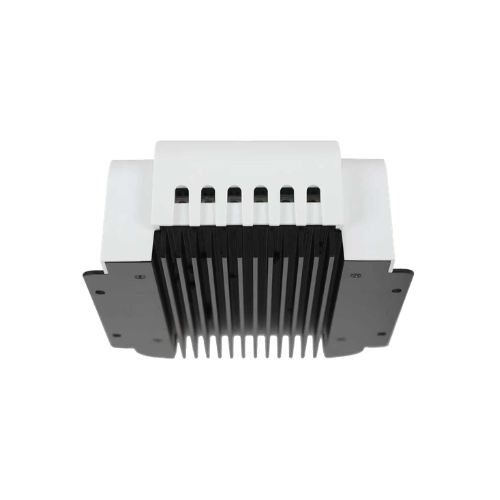

The MPPT Controller:

  • This solar MPPT controller delivers a high charging efficiency and excellent value for money. While it may not provide 100% true MPPT functionality, it still delivers reliable performance. tracking efficiency not less than 99.5%. 12V24V/36V/48V automatic recognition; dual USB 5V charging ports
  • Multi-function LCD with backlight display and clock display, 7 operating modes: charging mode, light control mode, light control + time delay control mode, universal control mode, manual control mode, timing control mode
  • MPPT solar controller with voltage protection, discharge current protection, charge protection, over temperature protection
  • Compatible with Seal, GEL, Flooded, LifePO4 battery charging
Specification Details
Battery Voltage 12V / 24V
Charging Current 10 / 20A
Max Solar Input (Voc) 60V
Maximum PV Input Power 260W (12V Battery); 520W
USB Port DC 5V / 1.5A × 2 USB
Operating Temperature -25℃ ~ 55℃

INSTALLATION GUIDE >https://cdn.prod.website-files.com/634feb4571ccb50180b7962b/69bd7c9a6c5d6b24d201bea1_Solar%20panel%20details%20and%20useage.pdf

Additional information

Weight N/A
Dimensions N/A
Power

50W KIT, 100W KIT, 150W KIT

Brand

Seago
